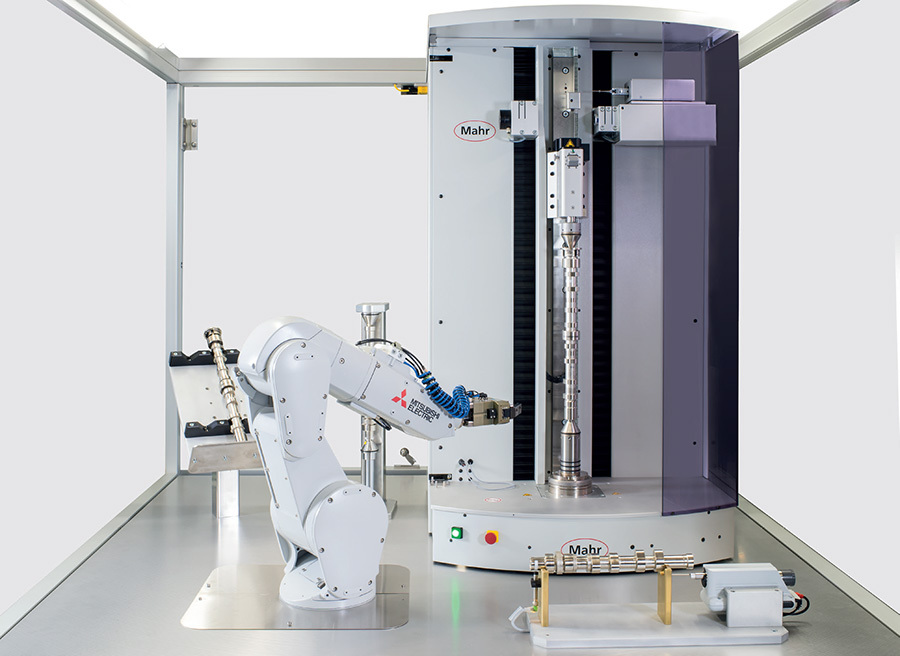

광학 및 접촉식 측정기

ITEM

DESCRIPTION

Dimensions (basic unit) (W/H/D)

690 mm x 1230 mm x 760 mm

Weight approx.

140 kg

Measuring range (Z)

760 mm

Workpiece weight max.

15 kg

Workpiece dimensions

max. length

750 mm

max. diameter

120 mm

Measurement resolution Adjustable

Lengths/diameters

0.01 mm...0.0001 mm; 0.001 inch...0.0001 inch

Angle

0.01...0.0001 degrees (decimal) or degrees, minutes, seconds

Error limit MPEE1

Length

≤ (2.0 + l/125) μm; l in mm

Diameter

≤ (1.0 + l/125) μm; l in mm surfaces

Repeatability 4 s for 50 measurements

Length

1.5 μm

Diameter

1.0 µm, with clean, ground workpiece

Valid in temperature range 20°C ± 2 K

Drives

Travel speed Z

max. 200 mm/s

Travel speed X

max. 100 mm/s

Travel speed Y

max. 50 mm/s

Rotational speed C

max. 1.0 1/s

Optics

Telecentric precision lens;

Red lighting with high light output in flash mode

Camera

CMOS matrix with USB port

1280 x 1024 pixels

Full frame mode

15 images/s

Subframe mode (16 rows)

approx. 400 images/s

Filter algorithm to exclude dirt particles during the edge calculation

Tactile probe

2-coordinate probe

Measuring range

 +/- 300 µm

Measuring force

at 100 µm deflection = 0.2 - 0.3 mN

Measuring computer

19" industrial PC; WIN 7 x 64 bit

Ambient conditions

Operating temperature

 +10°C...+40°C

Recommended working temperature

 +15°C...+35°C

Storing/transport temperature

 -10°C...+50°C

Permitted humidity

max. 90%; non-condensing

Temporal temperature gradient

< 2 K/h

Spatial temperature gradient

< 1 K/m ceiling height

Air pressure

1000 hPa ± 200 hPa

Perm. ambient sound pressure

< 75 dB(A)

Electrical Connection

Supply voltage

100 VAC to 240 VAC +10 % /-15 %

Mains frequency

50 / 60 Hz

Power consumption

max. 1000 VA

Sound level

< 75 dB(A)

Permissible ground vibrations

0.5 Hz...20 Hz range

2 mm/s2 to 50 mm/s2 linear gradient

Range >20 Hz

50 mm/s2
