본 제품은 측정 설비나 bench gauge의 복잡 다양한 측정기에 사용할 수 있는 센서로써 Crankshaft, Camshaft, Conrod, Brake Disk등 다양한 자동측정기에 사용중입니다.



Mrling

Shanghai Mrling Measurement Technology Co., Ltd. is a professional manufacturer of measuring instrument, measuring implement and on-line checking fixture.
PRODUCTS
Probes and Measuring cells




상세설명

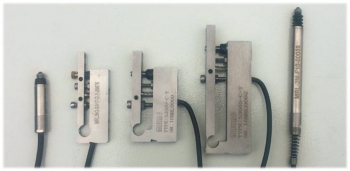

Probes and Measuring cells

Model No.

MRL S05

MRL S10

MRLT2060

MRL T3560

MRL T3585

MRL T120

MRL T726

Dimension

Ø8*39

Ø8*78

20*60*6

35*60*8

35*85*8

20*120*12

7*8*31

Resolution

0.0001mm

0.0001mm

0.0001mm

0.0001mm

0.0001mm

0.0001mm

0.0001mm

Measuring Range

±0.5mm

±1mm

±0.65mm

±0.75mm

±1.25mm

±1.5mm

±0.4mm

Type

LVDT

LVDT

LVDT

LVDT

LVDT

LVDT

LVDT

Setting dimension

Ø8mm

Ø8mm

M4*11

M4*12.5

M4*12.5

M4*15

M2.5


Special note

Standard sensor with a wide range of uses, moving along the axis of the shaft, high precision


With elastic body mechanism, stable performance, high precision, is the most used sensor


Application



All dynamic detection; crankshaft measuring machine three-section caliper, camshaft measuring instrument, camshaft hole electronic gauge, cylinder measuring machine crankshaft hole, cylinder plug gauge, connecting rod gauge
