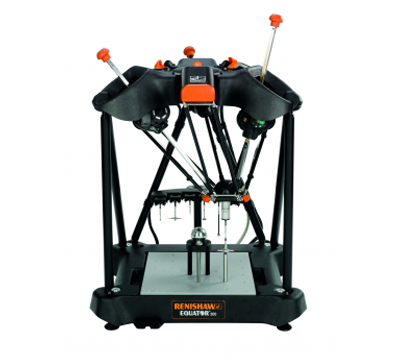

EQUATOR
Modus – programmer system software 직관적 사용자 인터페이스와 그래픽 측정루틴으로 쉽고 빠르게 사용가능 합니다.
상세설명
|
ITEM |
DESCRIPTION |
|
Working volume |
XY Ø300 mm |
|
Z 150 mm |
|
|
Comparison uncertainty* |
±0.002 mm |
|
Maximum scanning speed |
100 mm/s |
|
Maximum movement speed |
500 mm/s |
|
Scanning rate |
1000 points/s |
|
Scale resolution |
0.0002 mm |
|
Fixturing requirement* |
±1 mm |
|
Machine air supply requirement |
No air required |
|
Operating temperature |
+10 °C to +40 °C |
|
Storage temperature |
-25 °C to +70 °C |
|
Relative humidity operating range |
Maximum 80 %RH at 40 °C, non-condensing |
|
Machine electrical supply requirements |
100-240 V AC ±10 %, 50-60 Hz |
|
Electrical supply |
Single phase 100-240 V |
|
Maximum power consumption** |
190 W |
|
Typical power consumption*** |
80-100 W |
|
Probe type |
Renishaw 3-axis SP25 analogue scanning |
|
Fixture plate |
305 mm × 305 mm aluminium |
|
Height from base |
55 mm (EXT. 205mm) |
|
Dimensions (W×D×H) |
570 mm × 500 mm × 700 mm(EXT. 850mm) |
|
Maximum workpiece weight |
25 kg |
|
Machine weight |
27kg |
